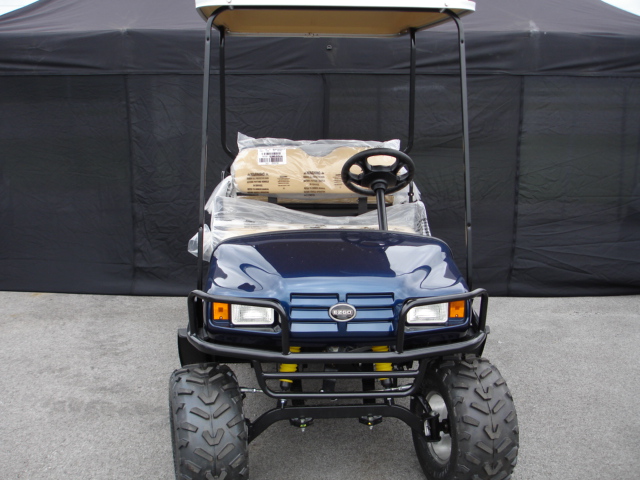

EZGO 2+2 Trail Utility Cart Power Source 4-cycle, 24.5 ci (400 cc) Overall Length 107.0 in (272 cm) (including rear footrest) Seating Capacity 4-person Steering Self-compensating single reduction rack and pinion
Valve Train Single cylinder OHV
Frame Welded tubular steel with DuraShield™ powder coat paint
Front Body & Finish Injection-molded Geloy XTW
Rear Body & Finish Injection-molded TOE (Thermoplastic Olefin)
Standard Color Forest Green
Overall Width 46.5 in (118 cm)
Overall Height
(no canopy) 49.0 in (124 cm) (top of steering wheel)
Overall Height
(with canopy) 78.0 (198 cm) (top of canopy)
Wheel Base 65.5 in (166 cm)
Front Wheel Track 38.0 in (97 cm)
Rear Wheel Track 38.5 in (98 cm)
Ground Clearance
(at differential) 4.3 in (11 cm)
Dry Weight 860 lb (390 kg)
Curb Weight 900 lb (410kg)
Bed Load Capacity 250 lb (110 kg)
Vehicle Load Capacity 800 lb (360 kg)
Outside Clearance Circle 20.3 ft (6.2 m)
Forward Ground Speed 17.0 mph ± 0.5 mph (27.3 kph ± 0.8 kph)
Reverse Ground Speed 12.3 mpg (19.8 kph)
Towing Capacity N/A
Front Suspension Leaf springs with hydraulic shock absorbers
Rear Suspension Leaf springs with hydraulic shock absorbers
Service Brake Dual rear wheel mechanical self-adjusting drum brakes
Parking Brake Automatic single point park brake release with self-compensating system
Front Tires Trail Wolf 20 x 11-10 (4-ply rated) uni-directional
Rear Tires Trail Wolf 20 x 11-10 (4-ply rated) uni-directional
Horsepwer(kW) 13hp (9.7 kW)
Electric System Starter/generator, solid state regulator
Batteries (qty/type) One 12-volt, maintenance free
Air Cleaner Dry cartridge
Lubrication Pressurized oil system
Oil Filter Spin on
Cooling System Air-cooled
Fuel Capacity 6 gallon (22.8 L)
Drive Train Automatic, continuously variable transmission (CVT)
Transaxle Differential with helical gears
Gear Selection Forward-Reverse
Rear Axle Ratio 11:42:1 (Forward), 15:78:1 (Reverse)
